Plate-Type DMs


We manufacture custom plate-type deformable mirrors with a high reflectivity multi-layer dielectric coating or metal type coatings. We have built DMs with a few actuators and up to 1004 actuators. Our DMs have been used in laboratories, field testing environments, and military platforms.

The 21-actuator device, shown above, was designed for high reflectivity at 1064nm. A recent experiment showed that one of these mirrors withstood 120 kW CW laser radiation without any thermally induced distortion. See: for more information.

Laser Beam Shaping

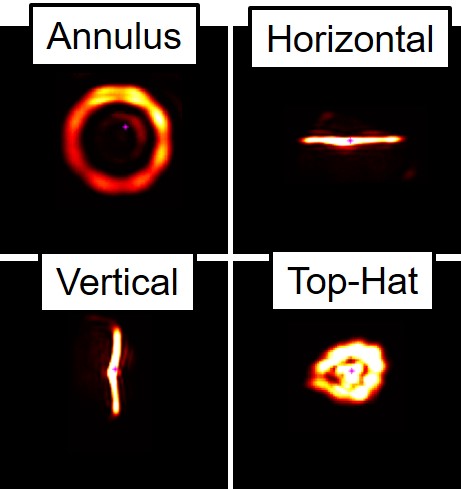

Using our capability to interface WaveTrain to our adaptive optics hardware (membrane deformable mirrors and cameras), we demonstrated the ability to convert a Gaussian beam into different shapes using only 7 actuators. This type of beam shaping could be applied to a wide variety of commercial laser applications.

Try our new Simple DM Model program!

Quote Generator

Try our new Automatic Estimate Generator for the PZT Plate-Type DMs..

DM Map Generator

Try our new DM Map Generator

Specification Sheet

NEW: Also try our new Specification Sheet for PZT Plate-Type DMs..

Datasheets and Manuals

Application Notes

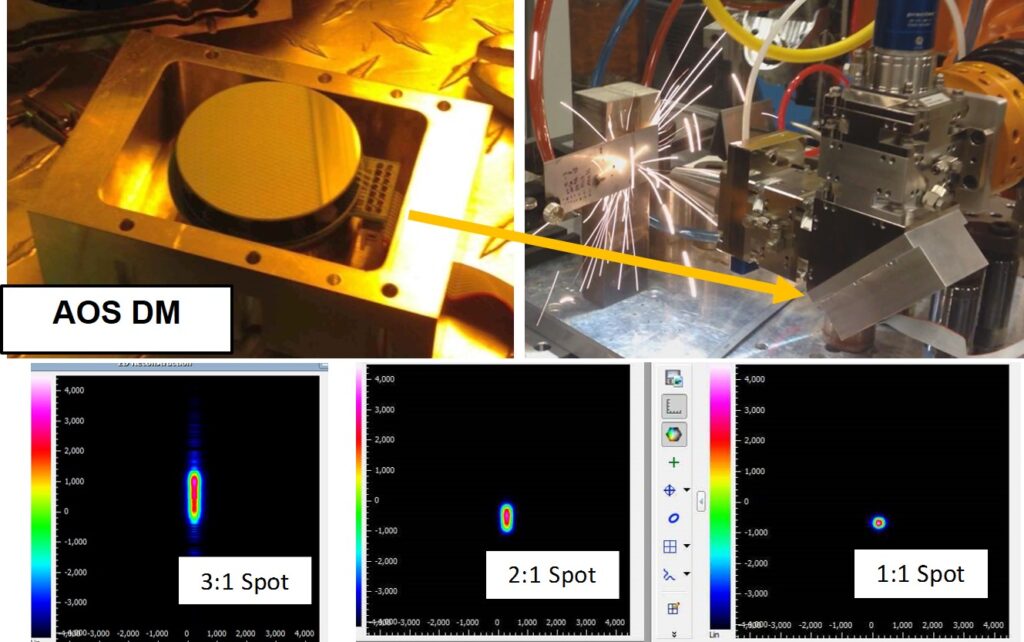

Laser Machining
